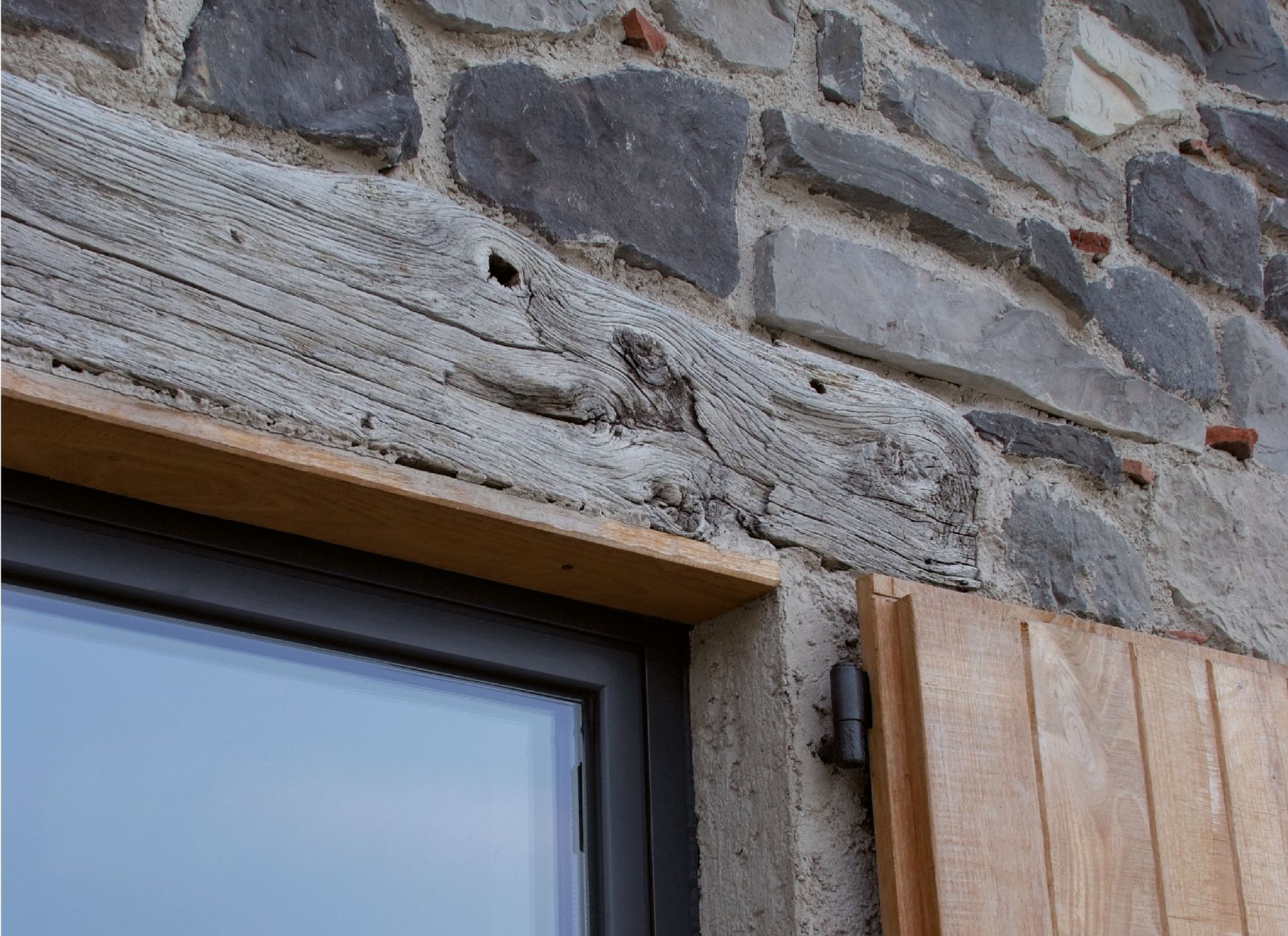

Window architrave with wooden beam

The simple insertion of a decorative beam satisfies, even if only visually, the need for a wall support above door and window openings and makes the work look authentic. Fit a wooden beam sawed to the thickness of 5-6 cm to the upper part of the opening and cover the rest of the border with installation material. To fit any leaf hinges use special assembly mounts fitted before installing the insulation.

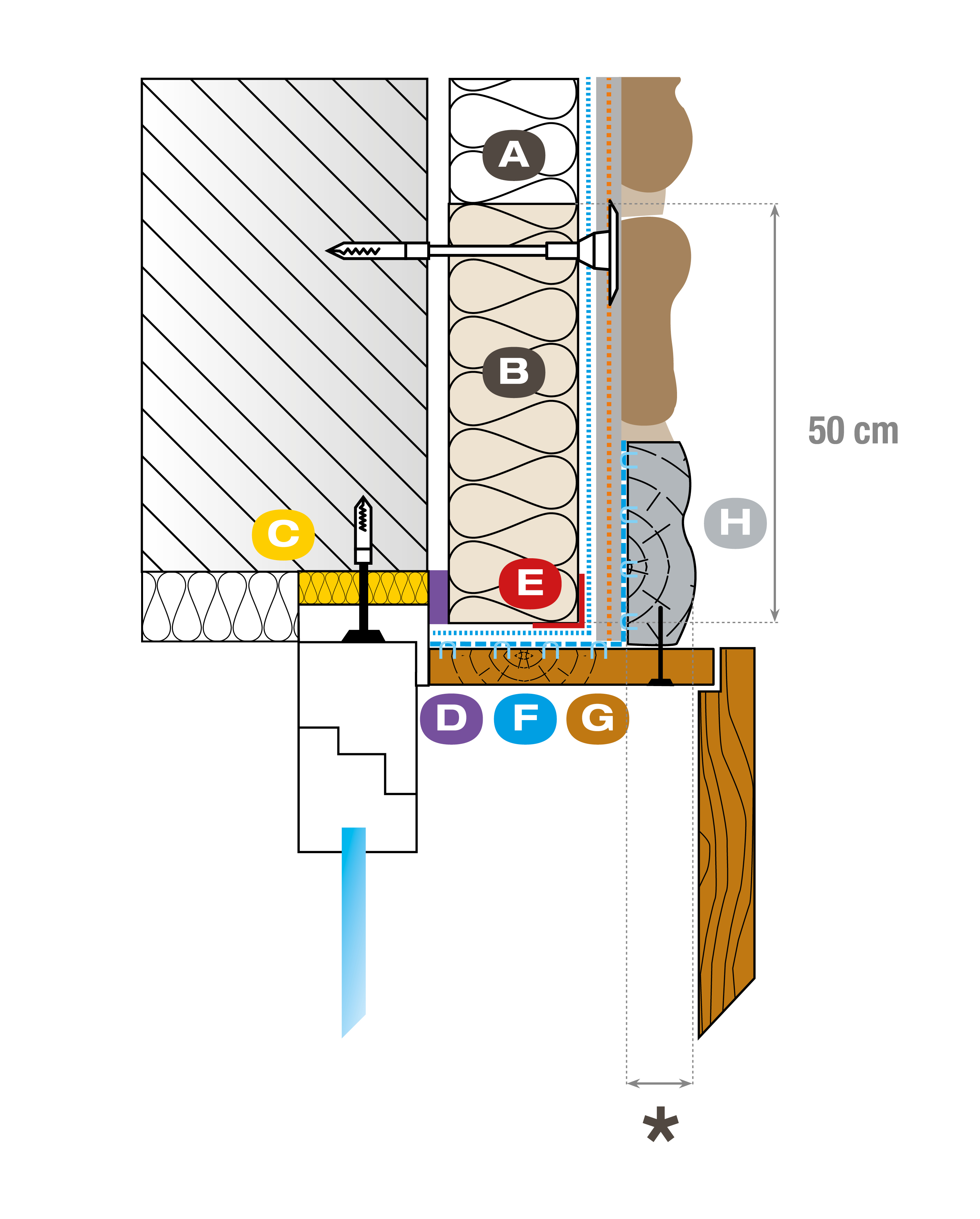

A. Insulation panel
B. Fireproof safety panel
C. Polyurethane foam
D. Strip of seal
E. Corner profile
F. Galvanised metal mesh with large mesh secured with staples
G. Closure strip
H. Wooden beam section

* The thickness of the beam should be calculated on the basis of the thickness of the Geopietra brick or stone model chosen.
