Window architrave with support strip

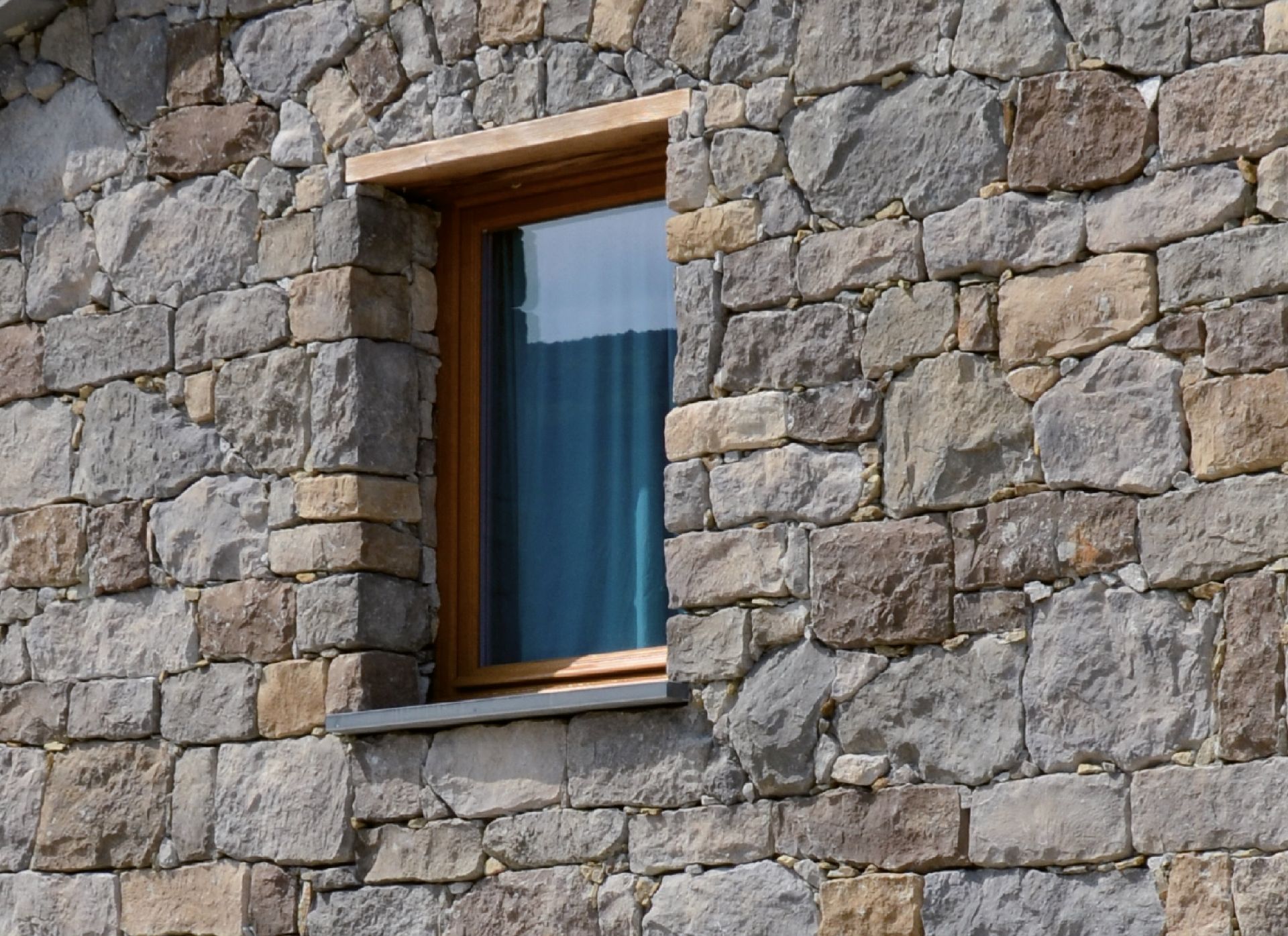

A small wooden beam used to be inserted above windows in many stone constructions and had a twofold function - to provide initial support for the arching and decorate the window. To reproduce the same visual effect fit the stones on the side corners of the opening first, up to the required height, and insert the beam with a length equal to the opening, resting it on the corners, then proceed with the flat stones. In the case of large openings with long beams arrange fasteners in the central section.

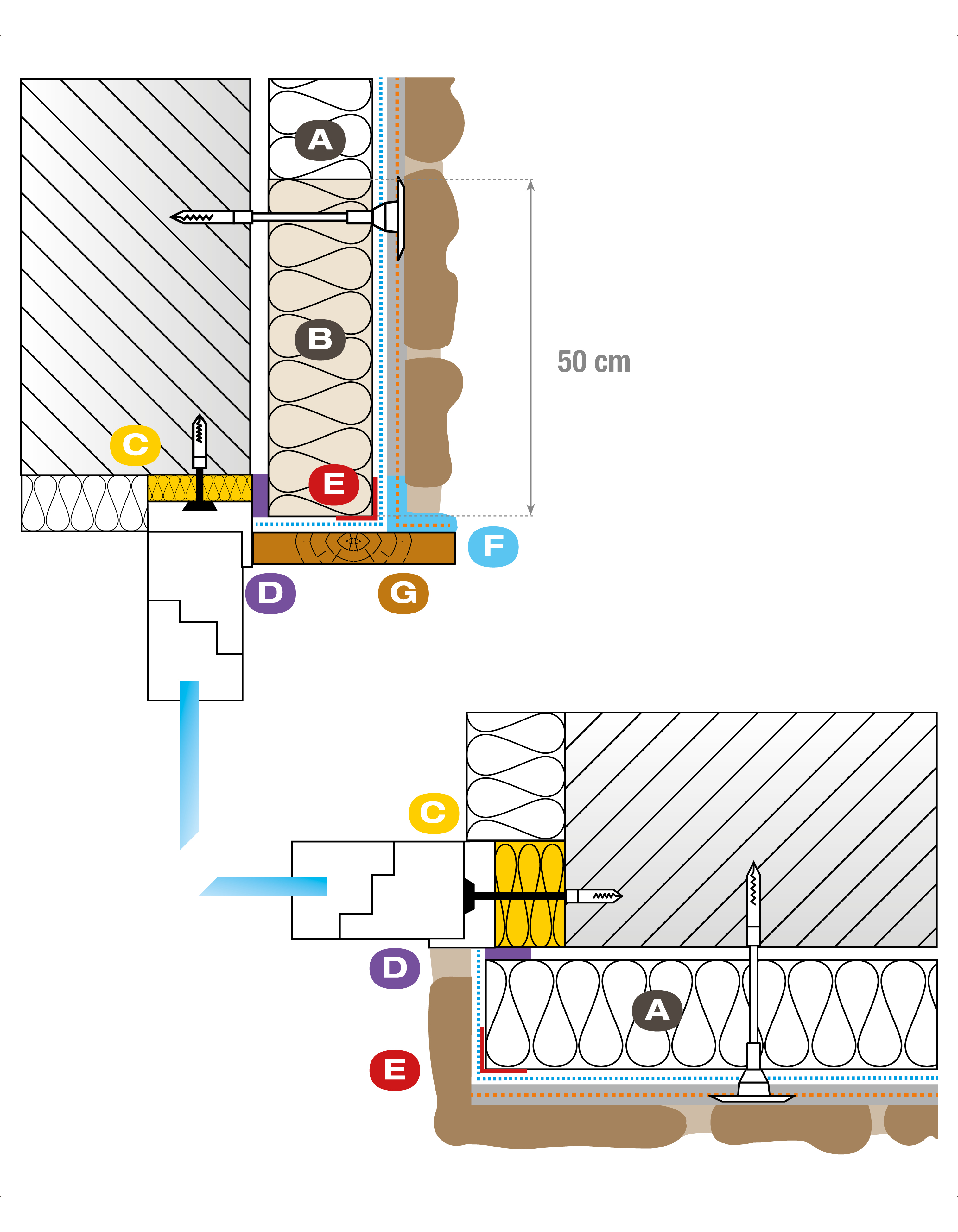

A. Insulation panel
B. Fireproof safety panel
C. Polyurethane foam
D. Strip of seal
E. Corner profile
F. Elastic waterproofing reinforced with Georete mesh
G. Closure strip
