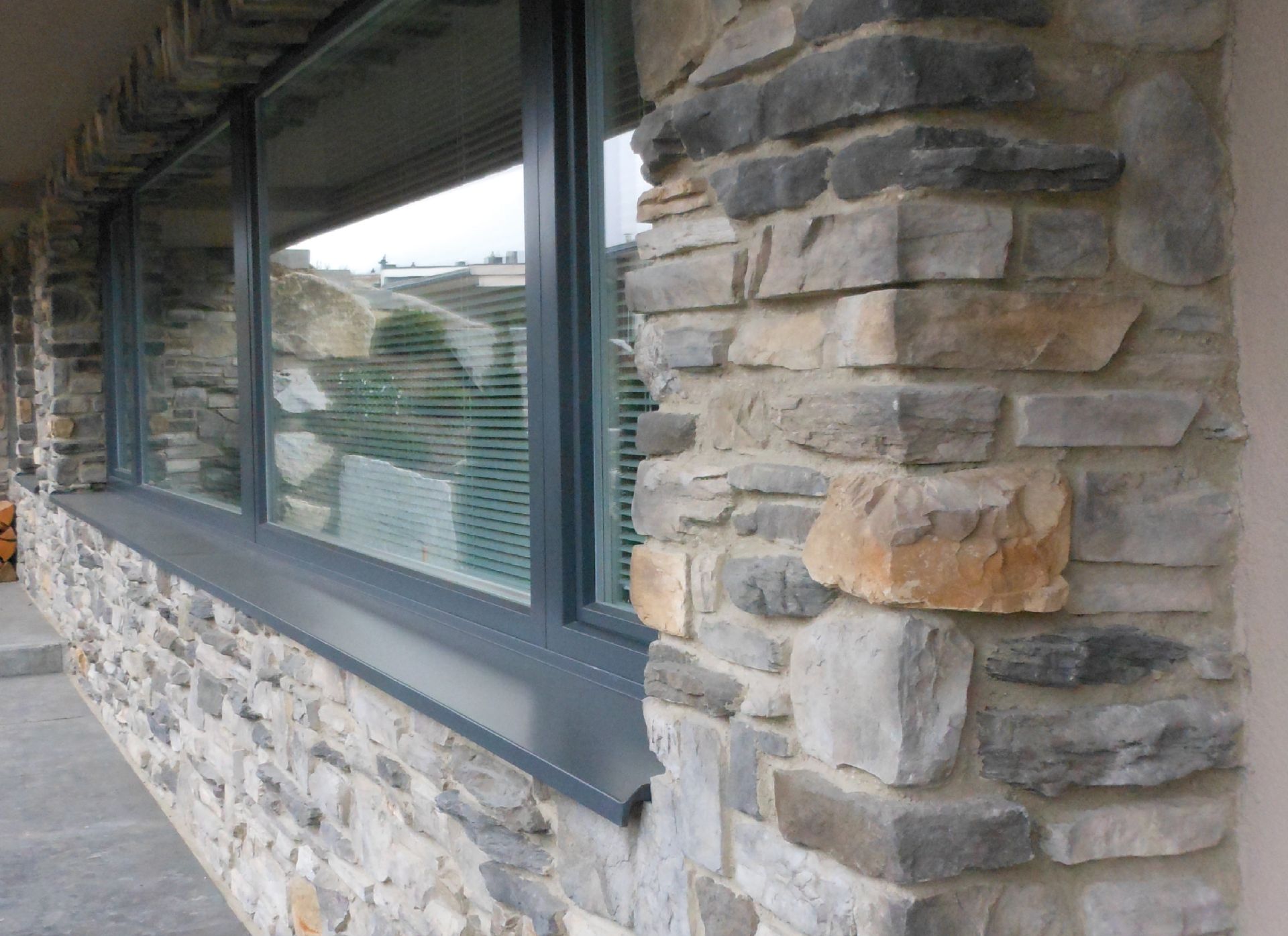

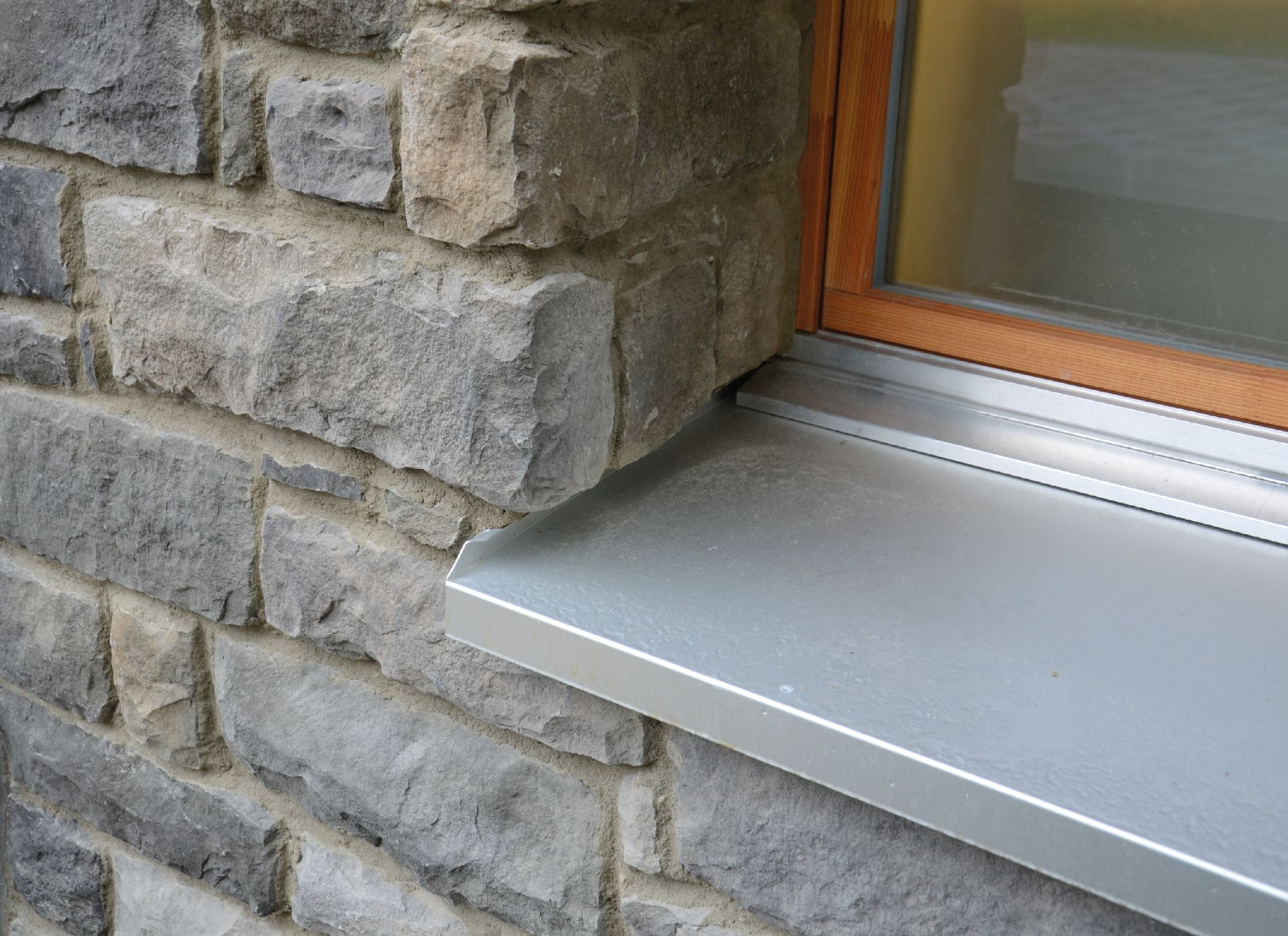

Window ledge with drip feature
When finishing off doors and windows maximum care must be taken with joints between coverings and the material bordering the opening, where thermal bridges can transpire and thermal expansion can cause cracks.

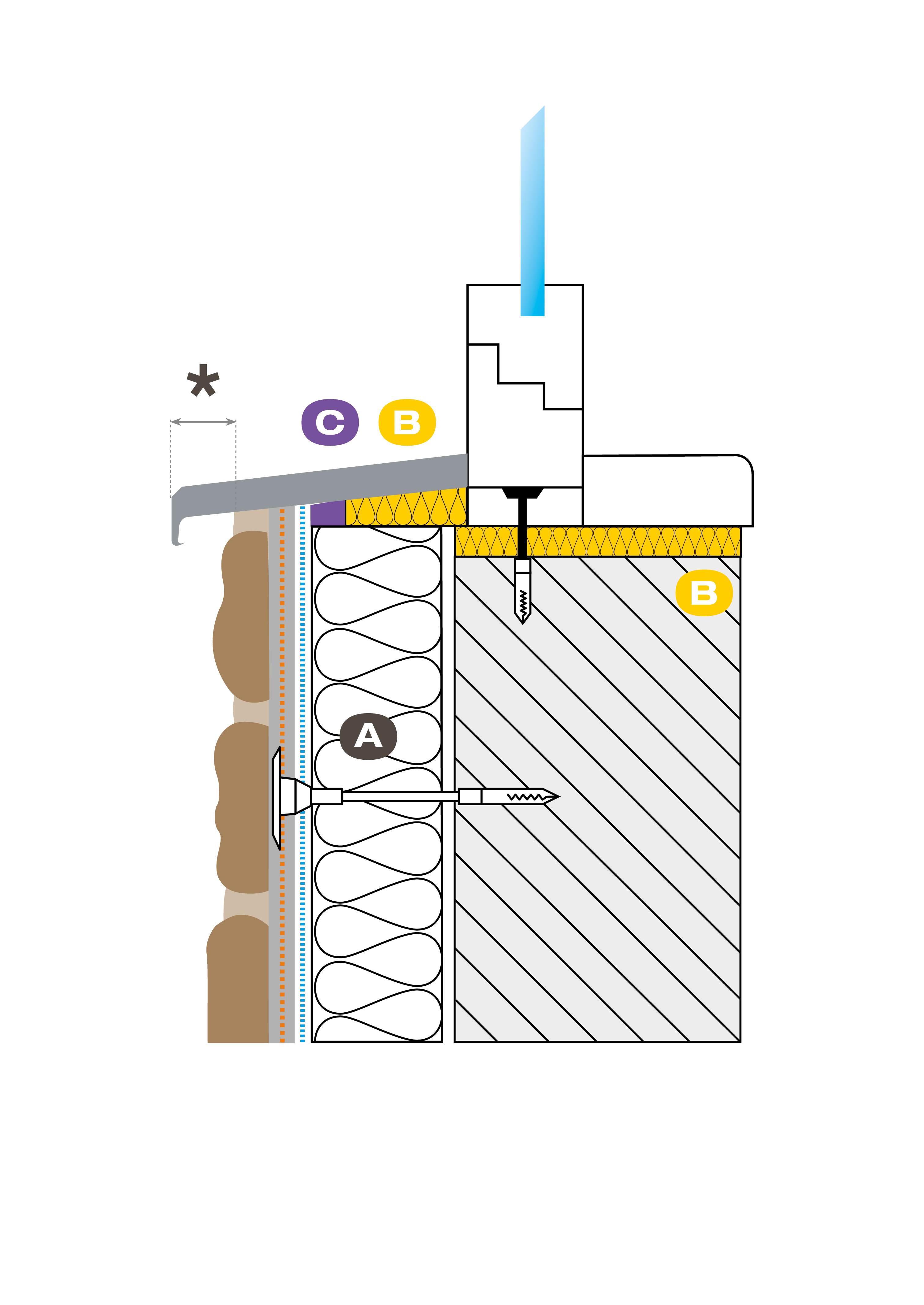

A. Insulation panel
B. Fireproof safety panel
C. Strip of seal
* Consider leaving at least 1.5 cm between the cover with drip feature and the covered wall.
