Featuring a square or rectangular shape, the CAPRI LED outdoor lighting system is made of AISI 316L stainless steel (marine grade).

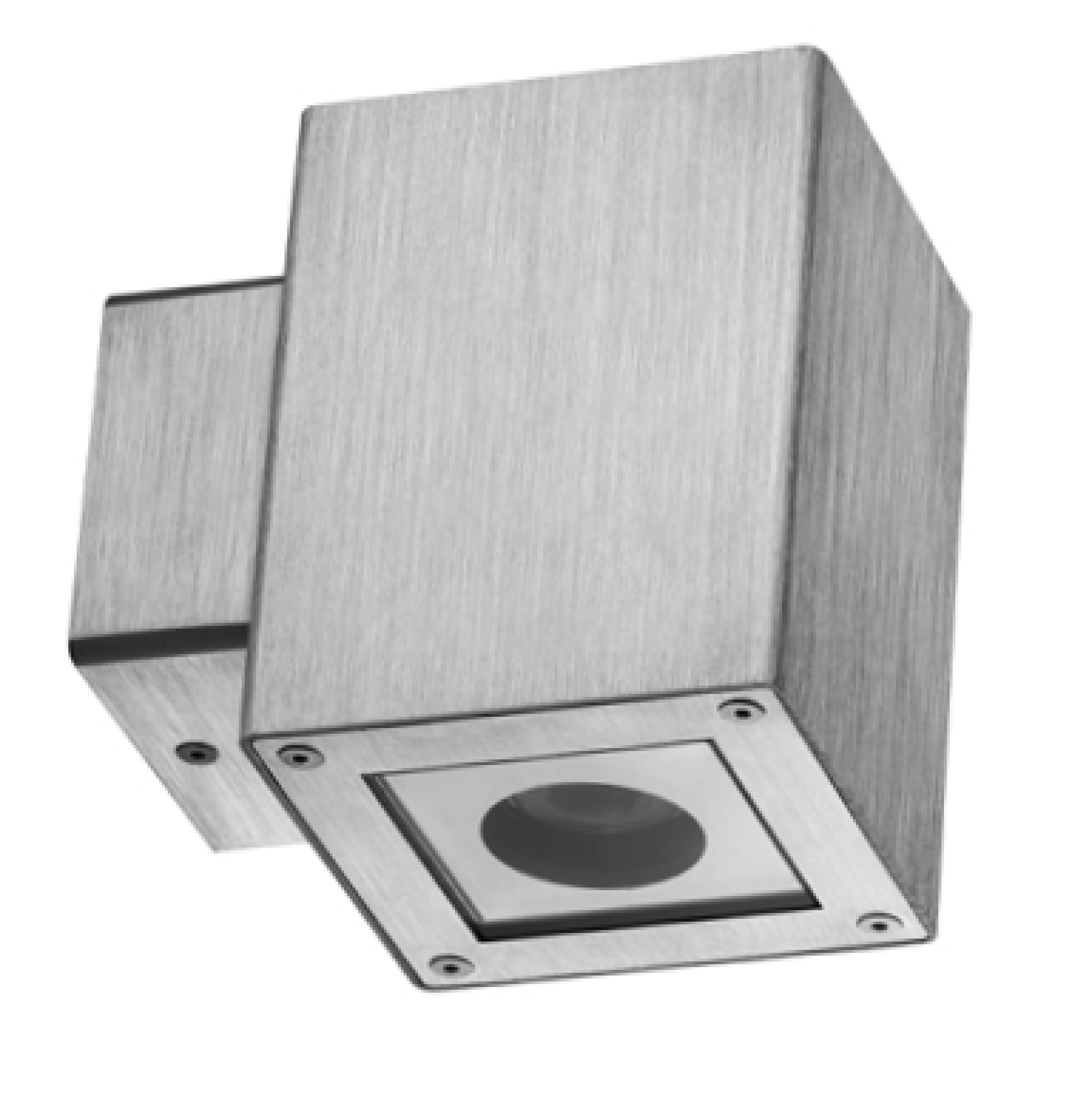

CAPRI 100
DUAL EMISSION

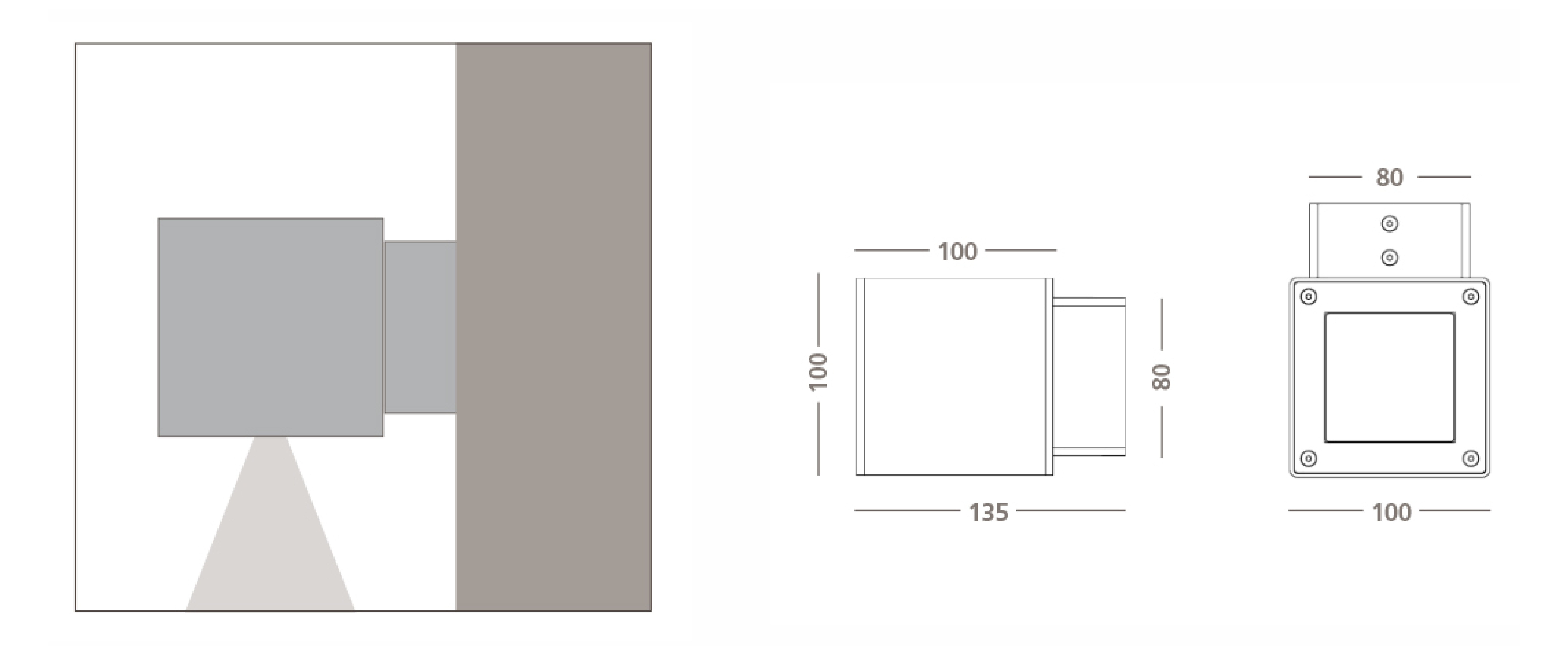

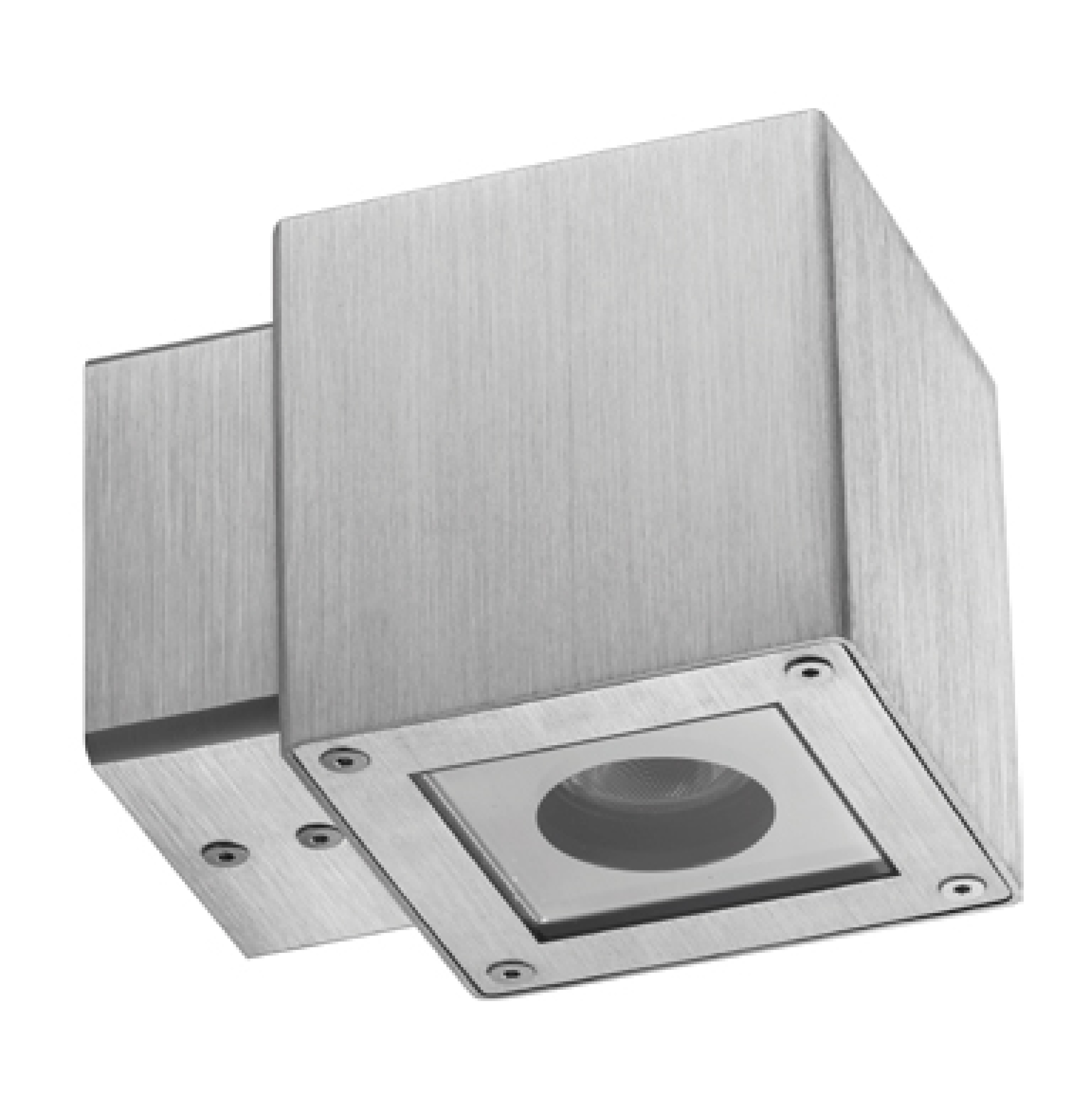

CAPRI 100
SINGLE EMISSION

EQUIPMENT FOR WALL INSTALLATION:

Extruded AISI 316L stainless steel light body.

Flush AISI 316L stainless steel frame with A4 stainless steel screw fastening system.

Tempered extra-clear glass diffuser, 5 mm thick.

Silicone rubber seals.

PMMA Lenses for 21°, 45° or 65° light beams, Street optic or Asymmetric.

Electronic power supply included. 220-240 Vac 50/60Hz power supply.

LED power source included and not replaceable.

STAINLESS STEEL support PLATE for CAPRI included

CAPRI 100 with white 3000°K 2x4W 230V 21°
CAPRI 100 with white 3000° K 2x4W 230V 45°
CAPRI 100 with white3000° K 2x4W 230V 65°
CAPRI 100 with white 3000° K 2x4W 230V Asymmetric
CAPRI 100 with white 3000° K 2x4W 230V Street optic

CAPRI 100 with white 3000°K 1x4W 230V 21°
CAPRI 100 with white 3000° K 1x4W 230V 45°
CAPRI 100 with white 3000° K 1x4W 230V 65°
CAPRI 100 with white 3000° K 1x4W 230V Asymmetric
CAPRI 100 with white 3000° K 1x4W 230V Street optic

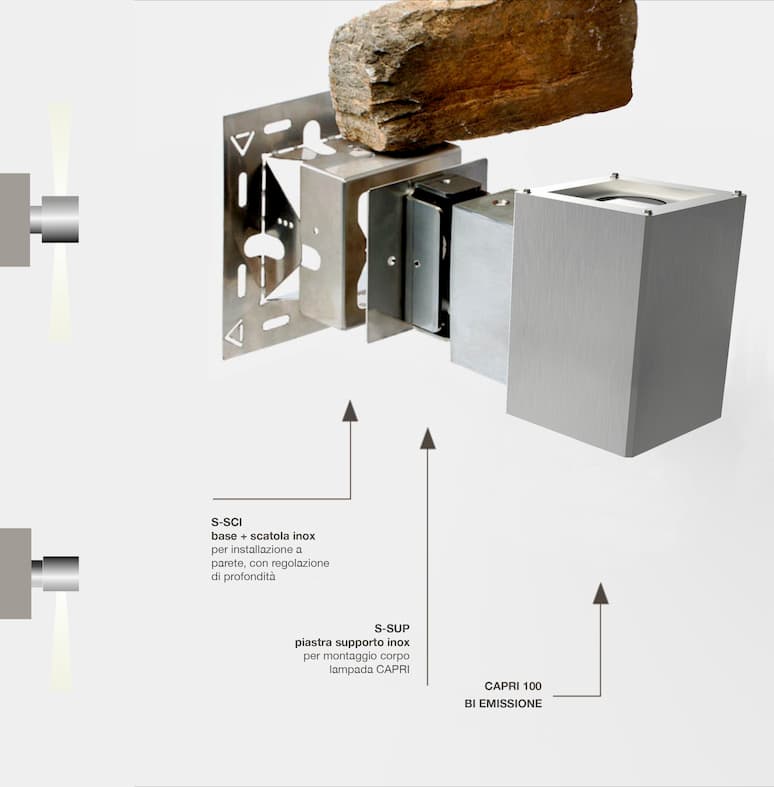

BASE and STAINLESS STEEL BOX assembly

FRAME and CASE in STAINLESS STEEL for OTTAGONO, STRIKER and CAPRI for wall installation on stone edge with depth* adjustment. (S-SCI).

*The depth of the box in stainless steel can suit the various thicknesses of Geopietra stones but not that of Terrakotta bricks.

The unique assembly system has metal containers with an adjustable depth, which suits the varied thickness requirements of Geopietra® coverings.

These containers are wall-mounted with Geocoll® adhesive before the covering is installed, and are connected together by sheathing containing the wires leading to the transformer, without having to be built in.

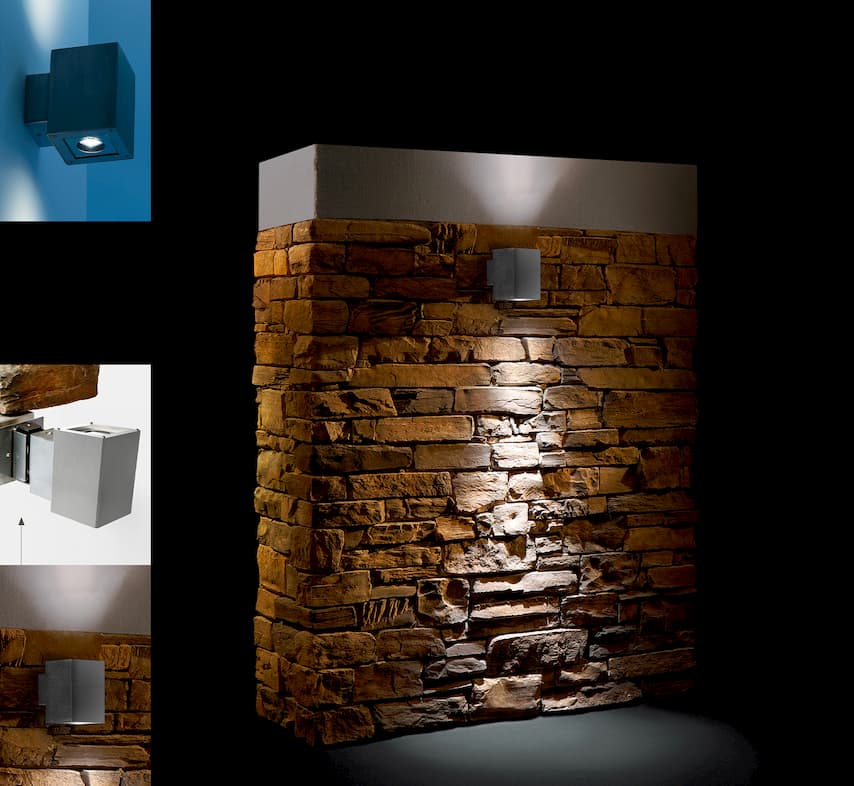

Thanks to the new Geopietra® system, OTTAGONO can be incorporated into murogeopietra® veneer on a traditional masonry wall or an external thermal insulation backing, without requiring screw anchors or breaking the wall, thus eliminating any problems associated with thermal bridge and offering ample freedom of design.

Designed exclusively by Geopietra®
TECHNICAL MANUAL
the simple and innovative system for a split-free assembly

Geopietra® combines the emotion of stone with the magic of the words of light while maintaining, as always, functionality and high quality.
