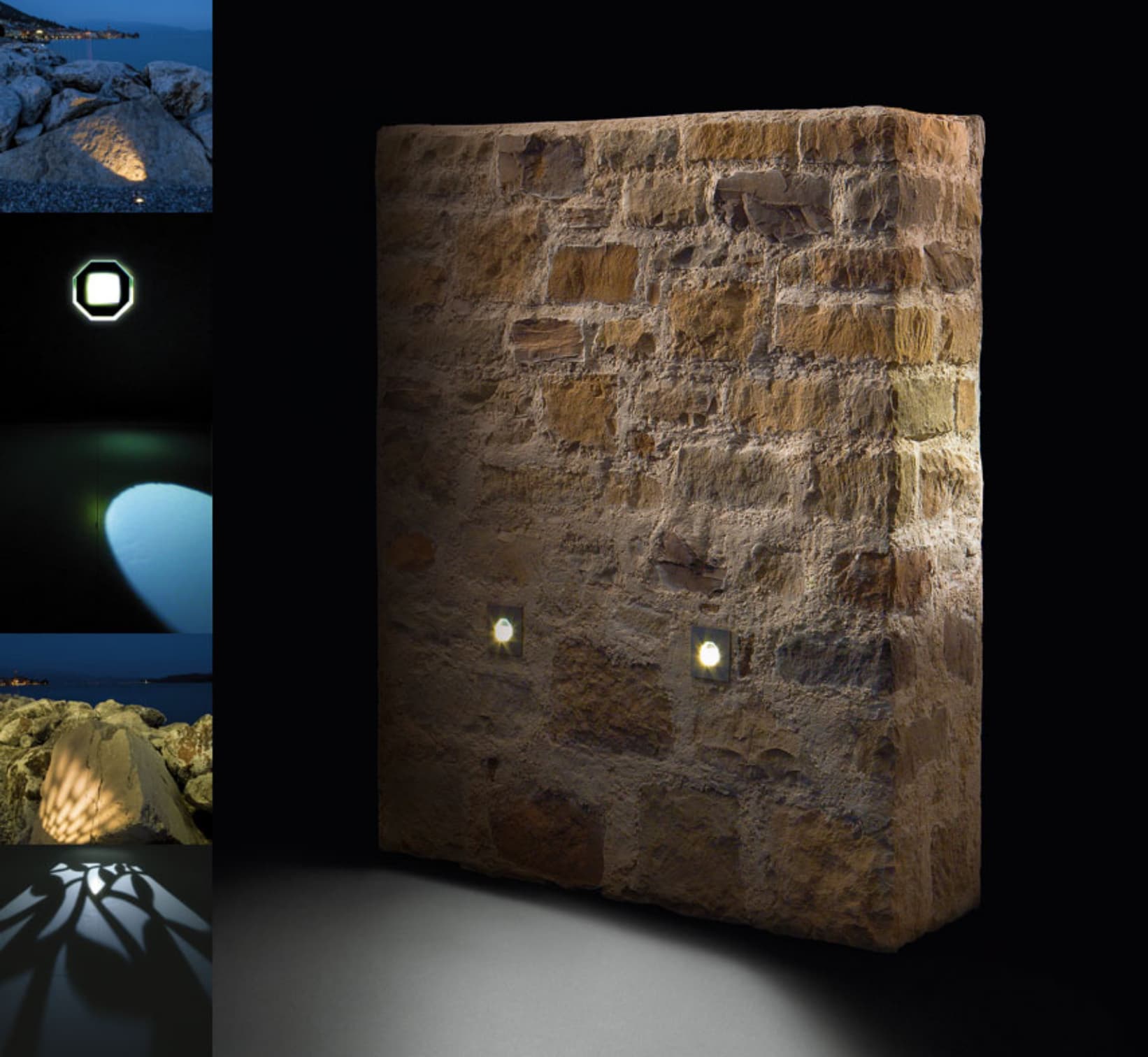

Conceived by Isao Hosoe designers, it offers the possibility of creating customized light sculptures.

A stainless steel casing, the depth of which can be adjusted to fit different Geopietra® veneer thickness requirements. Wall mounted with Geocoll levelling glue applied prior to cladding, it does not require any recesses. The depth of the box in stainless steel can suit the various thicknesses of Geopietra stones but not that of Terrakotta bricks.






S-SCI
Stainless steel base and depth-adjustable casing for flush mounting with the manufactured stone veneer.



OTTAGONO 100 | with 3W LED LIGHT 45° 3000K FILTER
Stainless steel body in an octagonal shape
AISI 316L stainless steel outer frame, satin finish
Stainless steel screws
O-Ring seals.
Toughened glass diffusor, 6mm thick,
available with a 45° light beam opening.

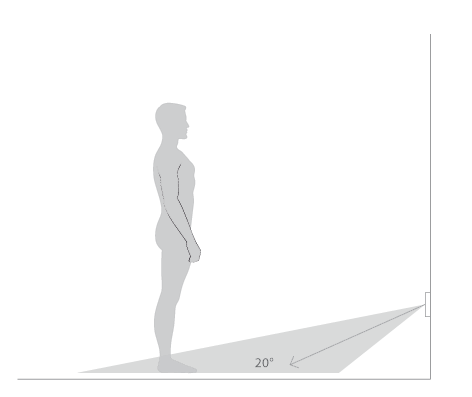

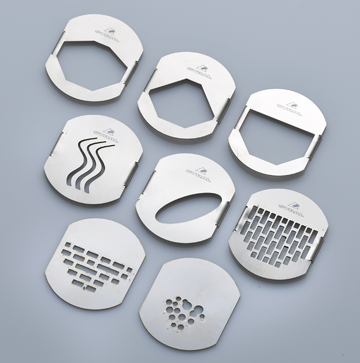

Optics for standard 20° and 30° light beam opening or interchangeable masks for ellipse, cirle, wave
and brick scenic effects are available on request.



INDICATIVE POWER SUPPLY DATA

OTTAGONO
(N° pz.)
OTTAGONO
Power (Watt)
I out
(mA)

V out
(Volt)

POWER
(Watt)

1/2 3 700 11 6
3/4 3 700 18 12
4/5 3 700 22 15
7/13 3 700 50 36



CODE DESCRIZIPTION
S-SCI BASE+SCATOLA INOX per installazione a parete AVAILABLE
S-OTT 1-3W 45  OTTAGONO 100 with 1-3W LED light, 45° 3000K filter AVAILABLE
S-OTT 1-3W 30 OTTAGONO 100 with 1-3W LED light, 30° 3000K filter ON REQUEST
S-OTT 1-3W 20 OTTAGONO 100 with 1-3W LED light, 20° 3000K filter ON REQUEST
S-OTT 1-3W E OTTAGONO 100 with 1-3W LED light, ELLIPSE 3000K filter ON REQUEST
S-OTT 1-3W C OTTAGONO 100 with 1-3W LED light, CIRCLES 3000K filter ON REQUEST
S-OTT 1-3W O OTTAGONO 100 with 1-3W LED light, WAVES 3000K filter ON REQUEST
S-OTT 1-3W M OTTAGONO 100 with 1-3W LED light, BRICK 3000K filter ON REQUEST

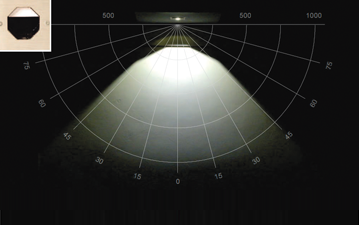

Apertura fascio luce a 45°

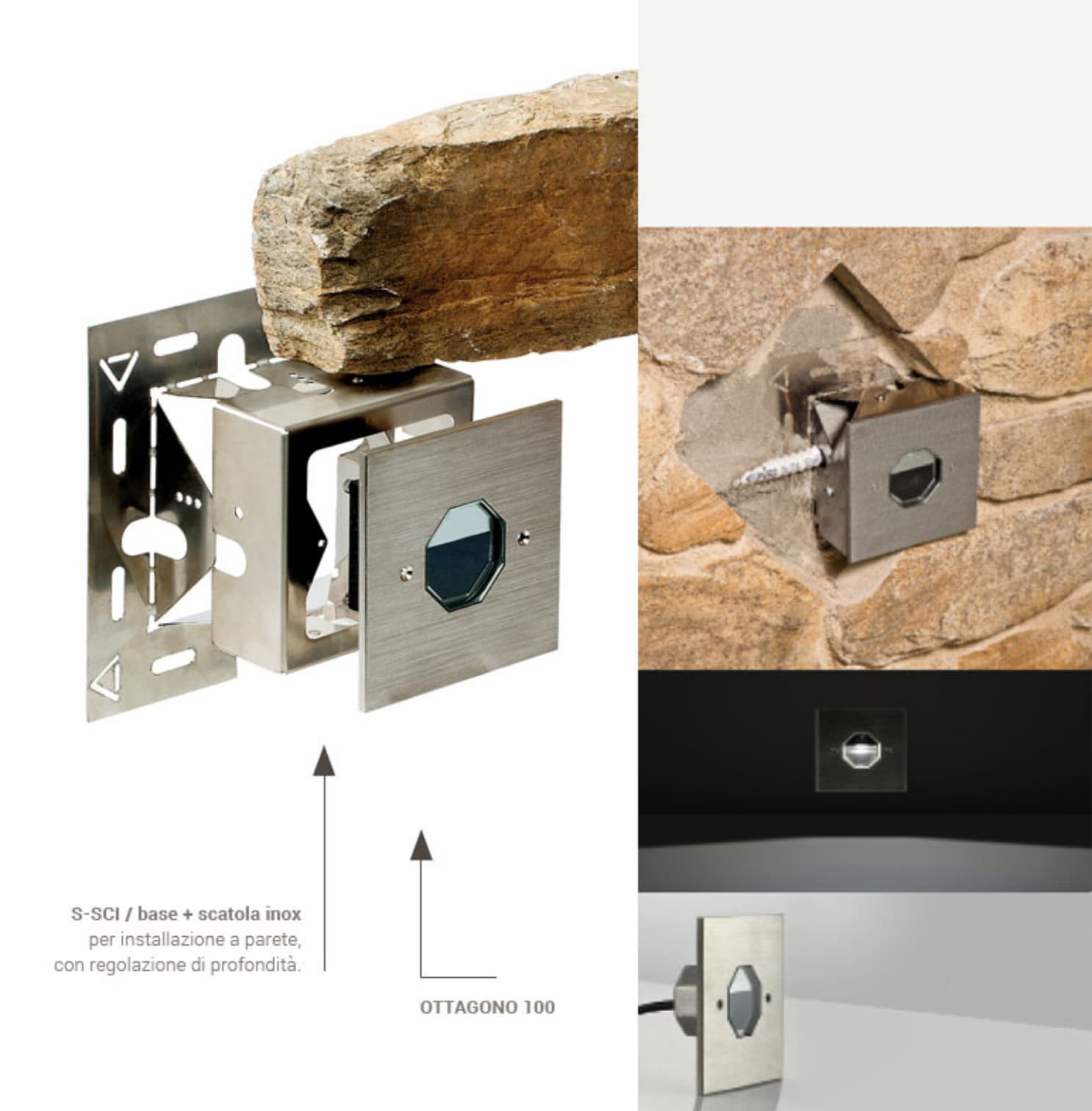

BASE and STAINLESS STEEL BOX assembly

FRAME and CASE in STAINLESS STEEL for OTTAGONO, STRIKER and CAPRI for wall installation on stone edge with depth* adjustment. (S-SCI).

*The depth of the box in stainless steel can suit the various thicknesses of Geopietra stones but not that of Terrakotta bricks.

The unique assembly system has metal containers with an adjustable depth, which suits the varied thickness requirements of Geopietra® coverings.

These containers are wall-mounted with Geocoll® adhesive before the covering is installed, and are connected together by sheathing containing the wires leading to the transformer, without having to be built in.

Thanks to the new Geopietra® system, OTTAGONO can be incorporated into murogeopietra® veneer on a traditional masonry wall or an external thermal insulation backing, without requiring screw anchors or breaking the wall, thus eliminating any problems associated with thermal bridge and offering ample freedom of design.

Designed exclusively by Geopietra®
TECHNICAL MANUAL
the simple and innovative system for a split-free assembly

Geopietra combines the emotion of stone with the magic of the words of light while maintaining, as always, functionality and high quality.
