discreet, perfect with stone, suitable for all settings, equally elegant for interior use.

Stainless steel base and casing that can be adjusted in depth to suit the various thicknesses of Geopietra® manufactured stone veneer. To be wall mounted using GeColl® levelling glue prior to cladding, it does not require any recesses. The depth of the box in stainless steel can suit the various thicknesses of Geopietra® stones but not that of Terrakotta bricks.

faretto e muro in piatra

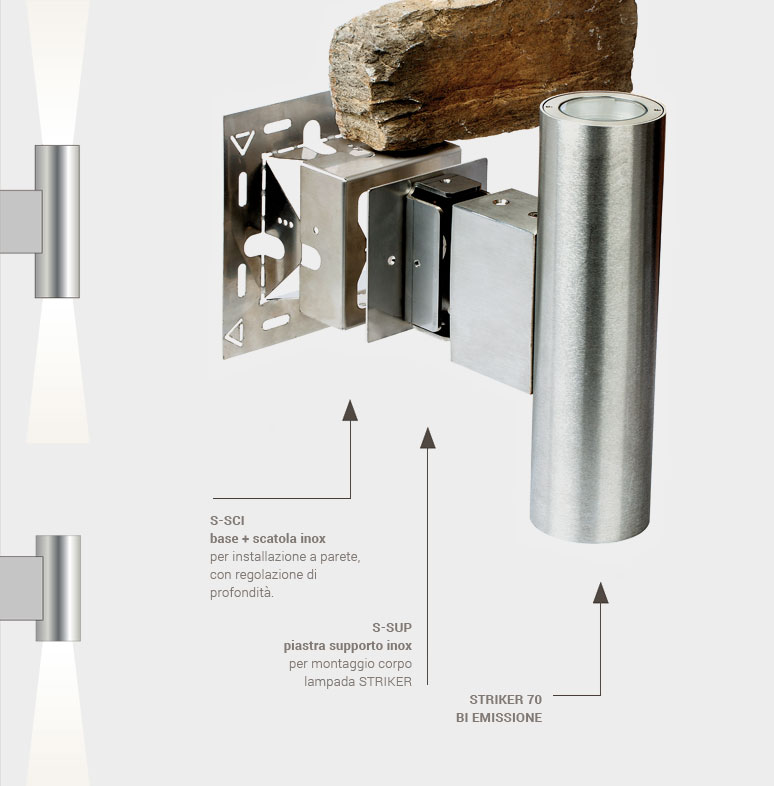

striker 2

S-SCI
Stainless steel base and casing for flush wall mounting with depth adjustment.

S-SUP
Stainless steel supporting base for mounting the STRIKER lamp body.

STRIKER 70 | DUAL EMISSION
STRIKER 70 | SINGLE EMISSION

Equipment for wall installation: Extruded AISI 316L stainless steel light body. Glassholder frame made of AISI 316L stainless steel, fully concealed in the profile. O-ring rubber seals. Tempered, extra clear, transparent glass diffuser, 4-mm thick. Multi-chip LEDs for the mono and bi-emission version. PMMA lenses for 21°, 45°, 65°. Electronic power supply included. 220-240 Vac 50/60Hz power supply. Insulation class II. Energy class A / A + / A ++. EU regulation 874/2012. LED power source included and not replaceable. The device is supplied with 0.5 m of H05RN cable. STAINLESS STEEL support PLATE for STRIKER included.

faretto muro ottagono
stral
03 ottagono striker
STRIKER 70 | DUAL EMISSION


S-STR 70 2x3x1W 21°
white LED 3000K 2x5W 230V 21° - 230V power supply unit included
ON REQUEST
S-STR 70 2x3x1W 45°
white LED 3000K 2x5W 230V 45° - 230V power supply unit included
ON REQUEST
S-STR 70 2x3x1W 65°
white LED light 3000K 2x3x1W 10° - 230V power supply unit included
ON REQUEST
06 ottagono striker
stral
04 ottagono striker
STRIKER 70 | SINGLE EMISSION


S-STR 70 5W 21°
white LED 3000K 5W 230V 21° - 230V power supply unit included
ON REQUEST
S-STR 70 5W 45°
white LED 3000K 5W 230V 45° - 230V power supply unit included
ON REQUEST
S-STR 70 5W 65°
white LED 3000K 5W 230V 65° - 230V power supply unit included
ON REQUEST

BASE and STAINLESS STEEL BOX assembly

FRAME and CASE in STAINLESS STEEL for OTTAGONO, STRIKER and CAPRI for wall installation on stone edge with depth* adjustment. (S-SCI).

*The depth of the box in stainless steel can suit the various thicknesses of Geopietra stones but not that of Terrakotta bricks.

The unique assembly system has metal containers with an adjustable depth, which suits the varied thickness requirements of Geopietra® coverings.

The unique assembly system has metal containers with an adjustable depth, which suits the varied thickness requirements of Geopietra® coverings.

Thanks to the new Geopietra® system, OTTAGONO can be incorporated into murogeopietra® veneer on a traditional masonry wall or an external thermal insulation backing, without requiring screw anchors or breaking the wall, thus eliminating any problems associated with thermal bridge and offering ample freedom of design.

Designed exclusively by Geopietra®
TECHNICAL MANUAL
the simple and innovative system for a split-free assembly

Geopietra® combines the emotion of stone with the magic of the words of light while maintaining, as always, functionality and high quality.
